REA VeriMax for machineand plant construction

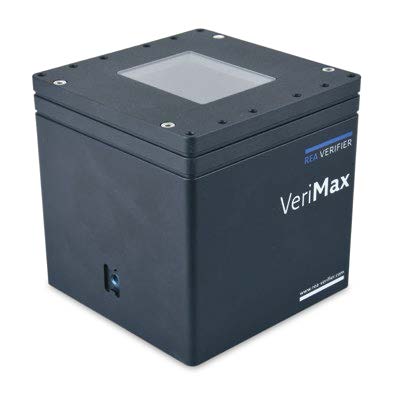

The REA VeriMax is a state-of-the-art matrix and barcode verification device which can be used across all industry
sectors. The VeriMax is designed to be mounted fixed in production lines and to be controlled by software individually
created by a machine builder. For this purpose the REA evaluation software offers a programming API. The REA
VeriMax can also be used as a standalone device mounted on a stand.
The measurement of optical codes in compliance with defined angles and distances of lighting and camera allows
accurate and reproducible measurement results and quality evaluations according to ISO/IEC standards.
The measuring system is based on a high-precision CMOS camera chip. Furthermore the design avoids influences
by ambient light.

The REA VeriMax is designed as offline Verifier for measuring samples. Settings and measuring results are entirely under
control of the machine builder’s software. This allows e.g. in controlled pharmaceutical manufacturing sites to acquire and
record all production relevant data in related to production batches. The verifier qualification (IQ/OQ) is then consequently
a part of the machine qualification and no longer a separate process.
The measured values can be also viewed and managed by a REA Verifier Software application (touchscreen optimized).
This can be separate standalone or in parallel to the integrated machine software. With REA VeriMax, you can quickly find out whether you are
using the EU and FDA (US) specifications. You will also see how the print quality of your codes through detailed measurement
results optimize it.

Options:
Four different camera modules with different fi eld of views and a selection of fi tting bottom plates are available. This allows adapting the verifi er to different code sizes.

Features:

Measurements by a CMOS camera
■ Fixed mounted lens to achieve highest reliability when
integrated into a machine
■ Red light illumination 660nm, 45° from four sides
■ Darkened measuring chamber to avoid ambient light
influences
■ Verification according to ISO/IEC 15415 for printed matrix
codes and ISO/IEC 15416 for printed bar codes
■ Verification according to ISO/IEC TR 29158 (formerly AIM
DPM guideline 2006) for direct part marking matrix codes
(optional)
■ Verification in compliance with GS1 specifications
Verification of GS1 data structures
■ Verification of optional parameters for optimizing the print
process Verification according to ISO/IEC TR 29158
(formerly AIM DPM guideline 2006) for direct part marking
matrix codes (optional)
■ Multilingual user interface and reports
■ For ease of use, settings can be stored in customized
profiles for fast selection
■ ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
■ Specific code selection to meet the pharmaceutical industry
demands
■ 24 Volt power supply for machine integration. A separate
24V power supply is available for standalone operation /
evaluation kit
■ Removable top cover platen with exchangeable glass plate
and threads for fixture mounting

Supported symbologies:
■ Matrix Symbologies (2D): DataMatrix, GS1 DataMatrix, DPM-matrix codes, QR-code, MicroQR-code, more under development
■ Barcodes (1D):
EAN-13, UPC-A, UPC-E with/without ADD-ON,EAN-8, 2/5 Interleaved with/without check digit,ITF-14, DHL Express, code 39 with/without check digit, PZN-code, Code 32, Code 128, GS1-128 with/without data structure check, GS1 DataBar

■ Optional Symbologies (1D):
2/5 3 Bars, 2/5 5 Bars, 2/5 IATA, 2/5 Baggage,2/5 DHL Express, Code39 Full ASCII, Code93, MSI,Plessey, Code 128 UPU, Code 39 UPU, Code 39 HIBC,Code 128 HIBC, Codabar Monarch (18), LAETUS Pharmacode, LAETUS Mini Pharma code
